Engineering design frequently requires managing systems where three components must sum to 100%. While standard two-dimensional charts track simple relationships, multi-variable fluids and gas streams demand a specialized geometric solution: ternary plotting.
In life-support engineering, subsea exploration, and industrial process design, ternary diagrams depicting oxygen (O2), nitrogen (N2), and helium (He) mixtures are known as Trimix Triangles.
Leveraging Trimixtriangles enables engineers and systems safety specialists to map complex compositional bounds, predict physiological behavior, and optimize automated gas-handling infrastructure across modern industry.
A ternary Trimix plot mapping mixing trajectories and compositional boundaries. Source: ResearchGate
1. Commercial Saturation Diving and Life-Support Systems
Deep subsea construction, pipeline maintenance, and underwater inspection rely on saturation diving, where divers live inside pressurized hyperbaric chambers for weeks at a time. To prevent nitrogen narcosis and manage gas density at extreme depths (often exceeding 300 meters), life-support engineers replace high levels of nitrogen with helium.
Atmospheric Control in Chambers
Hyperbaric chambers require continuous monitoring of oxygen and diluent gas ratios. Life-support technicians use Trimix Triangles to:
- Define Breathable Windows: Map precise ppO2 safety corridors to prevent both hypoxia (FO2<0.16) and central nervous system oxygen toxicity (ppO2>1.4 bar).
- Manage Gas Density: Higher working pressures increase gas density, raising breathing resistance and work of breathing (WOB). Plotting density gradients onto a ternary diagram allows engineers to maintain gas mixtures below recommended physiological density thresholds (under 5.2 g/L).
2. Automated Partial-Pressure Gas Blending Systems
Mixing high-pressure gases manually using partial pressures is time-consuming and prone to human error. Modern gas management facilities utilize computer-automated mixing panels governed by ternary algorithm models.

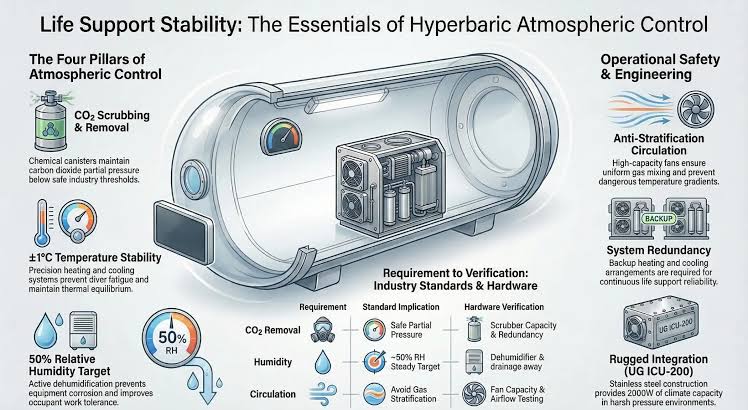

Hyperbaric life-support systems require precise atmospheric control. Source: Unique Group
Dynamic Blending Trajectories
When topping off a cylinder or bulk storage bank containing residual gas, the automated panel must calculate the exact vector required to reach a target mix (e.g., Trimix 18/45).
- Vector Navigation: The control system treats the current cylinder composition as an initial coordinate (x1,y1) on the Trimix plot.
- Sequential Injection: The software injects pure helium, oxygen, or top-off air, driving the composition along a predictable straight-line trajectory toward the target endpoint (x2,y2).
- Real-Time Compensation: Integrated mass-flow controllers continually read feedback from acoustic helium sensors and galvanic oxygen cells, re-calculating the vector path on the fly to correct for thermal pressure spikes during filling.
3. Industrial Hypobaric and Aerospace Life-Support Testing
Aerospace engineers testing high-altitude flight gear, extravehicular activity (EVA) suits, and hypobaric research chambers use ternary gas models to evaluate human performance in reduced-pressure environments.
Normoxic Equivalent Determination
As ambient pressure drops at extreme altitudes, maintaining an adequate partial pressure of oxygen requires altering the relative proportions of background inert gases.
- Suit Atmosphere Design: Spacesuits operate at lower total internal pressures to maintain joint flexibility. Engineers use ternary charts to plot normoxic equivalent gas curves, replacing nitrogen with helium or Argon depending on thermal insulation and decompression requirements.
- Ebullism and Hypoxia Boundaries: Ternary visualizations clearly demarcate regions where low ambient pressure risks blood gas vaporization or immediate hypoxic loss of consciousness.
4. Cryogenic Gas Separation and Helium Recovery Plants
Helium is a finite, highly valuable noble gas essential for medical MRI cooling, semiconductor manufacturing, and deep-sea diving. In industrial gas processing, spent Trimix mixtures from hyperbaric operations or industrial testing are captured and routed into closed-circuit recovery systems.
Raw Vent Gas (Trimix)
│
▼
┌──────────────────────────┐
│ Cryogenic Condenser │ <-- Separates Nitrogen via Liquefaction
└────────────┬─────────────┘
│
▼
┌──────────────────────────┐
│ Membrane Permeation │ <-- Purifies Helium to 99.9%+
└────────────┬─────────────┘
│
▼
Reclaimed Pure Gases (He / O2)
Process Modeling via Ternary Phase Diagrams
Cryogenic separation relies on the differing boiling points and vapor-liquid equilibria (VLE) of Oxygen (90.2 K), Nitrogen (77.3 K), and Helium (4.2 K).
- Phase Boundary Mapping: Engineers use ternary phase charts to locate two-phase (vapor-liquid) regions at varying temperatures and pressures.
- Separation Efficiency: By tracking mixture trajectories across the ternary field, process designers optimize distillation column temperatures to strip away nitrogen while reclaiming ultra-pure helium for reuse.
5. Hyperbaric Medical Research and Fire Suppression Design
Hyperbaric medicine and specialized deep-environment facilities require unique atmospheric engineering to balance patient safety, metabolic requirements, and environmental flammability limits.
Flammability Envelope Reduction
In high-pressure environments, elevated oxygen concentrations significantly increase the risk of ignition and accelerated combustion.
- Ternary Flammability Limits: Fire protection engineers overlay triangular flammability envelopes onto ternary gas charts.
- Inert Suppression: By injecting helium or nitrogen to shift the overall gas state outside the “flammability triangle,” engineers can design habitats that remain physiologically safe for human occupation while rendering environmental materials completely non-combustible.
Engineering Overview: Key Applications Summary
| Application Field | Primary Variables Mapped | Key Operational Benefit |
|---|---|---|
| Sat Diving Life-Support | O2, N2, He | Prevents oxygen toxicity, narcosis, and high gas density |
| Automated Blending | Pressure vectors, O2, He | Enables precise vector-based gas mixing trajectories |
| Aerospace / EVA | Ambient pressure, O2, He | Maintains normoxic oxygen levels in low-pressure suits |
| Cryogenic Separation | VLE Phase boundaries | Optimizes helium recovery from recycled gas streams |
| Hyperbaric Medicine | Flammability limits, O2, N2 | Eliminates combustion risks in hyperbaric chambers |
Conclusion: Expanding the Utility of Ternary Modeling
Far beyond simple diving charts, Trimix Triangles represent a fundamental tool in multi-variable fluid mechanics and life-support engineering. By converting three-variable system equations into intuitive two-dimensional models, engineers across aerospace, subsea construction, and industrial gas processing can ensure optimal safety, efficiency, and system performance.
